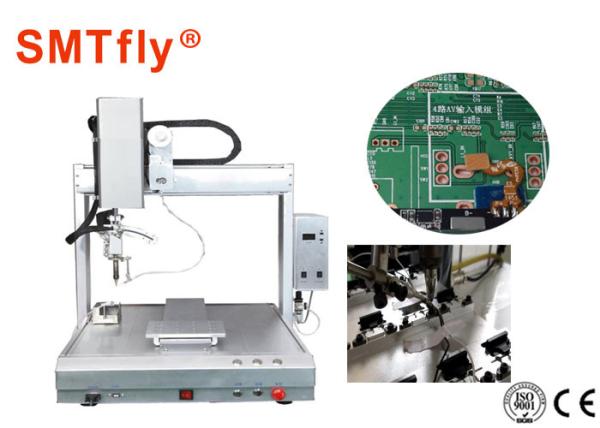

Printed Circuit Boards PCB Robotic Soldering Machine,SMTfly-411​ Feature:

1. Heating rate could be adjustable for different products;
2. Long life time thermode made of titanium alloy, ensure even temperature, fast raising;
3. Thermode designed to be horizontal adjustment, ensure even component compression;
4. Numerical control temperature, clear and precise;
5. Has digital manometes, preset pressure range;
6. Controlled by precise PID, phasc-angle driving;
7. Less vibration,less noise,voltage does not fluctuate;

8. Welding head made of molybdenum alloys, good heat transfer coefficient, abrasion - resistant.

Printed Circuit Boards PCB Robotic Soldering Machine,SMTfly-411​Specification:

Printed Circuit Boards PCB Robotic Soldering Machine​ Detailed Description:

1. multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),to achieve the 3D space arbitrary solder accurate location.

2. The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job.

3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and professional requirements, the realization of human editing operations.

4. Various of welding way, support spot welding and drag welding, all parameters is setted up by user,
meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved together with welding point coordinates, achieve flexible soldering.

5. Welding set arbitrary angle & direction is available, R axis controlled welding set,could be rotated 360
degrees freely.Setting feeding times, pre-heating time, and welding time according to different pads and parts,achieve complex soldering with a variety of soldering points.

6. Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions.Intelligent main control program realizes automation and intelligence.

After soldering samples picture for your reference:

Established in 2004,SMTfly Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of laser pcb depaneling machine,pcb separator,pcb cutting machine ,pcb/fpc robotic soldering machine ,hot bar soldering machine & other SMT equipments. We are located in Shenzhen with convenlent transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 35 employees,boast an annual sales figure that exceeds USD 4000000 and currently export 45% of our production worldwide.
Oue well-equipped facilities and exxcellent quality control throughout all stages of production enable us to guarantee total customer satisfaction .Beside,we have received CE certificate.
As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America .
If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
